Atmospheric pressure steam distributors

SA*
Atmospheric pressure steam distributors
  • General characteristics

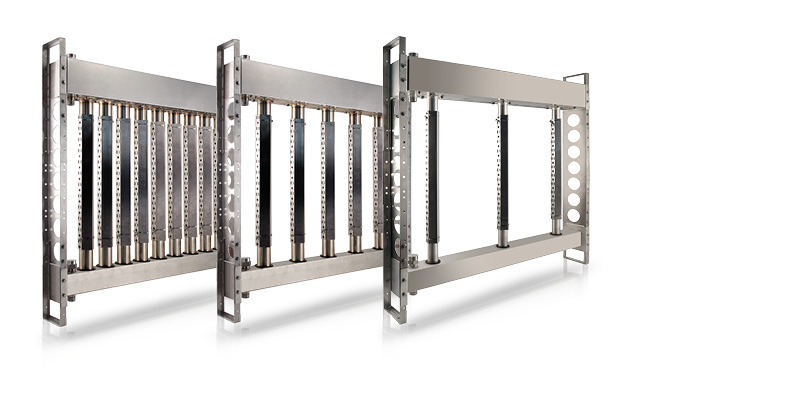

    ultimateSAM is a distributor for both pressurised steam and steam at atmospheric pressure; in the latter case it can therefore be used together with Carel humidifiers. SAM stands for Short-Absorption Manifold, meaning a steam distributor with a short absorption distance (even less than 200 mm). It has been designed to be “made to measure” for the AHU or duct, while ensuring low air heat gain (max. 2 °C/4 °F). With the ultimateSAM compact version, the steam distributor can be installed even in smaller ducts.

    All of the metal parts installed inside the AHU or duct are made from AISI 304 steel, so as to guarantee hygiene and a long operating life. The features of the ultimateSAM steam distribution system make it the perfect system for all AHU/duct humidification needs, providing designers, installers and service personnel with the best possible solution.

    The wide range of products, with a vast choice of steam flow-rates and numerous options, make it the ideal system for various applications, including hospitals and the pharmaceutical industry.
