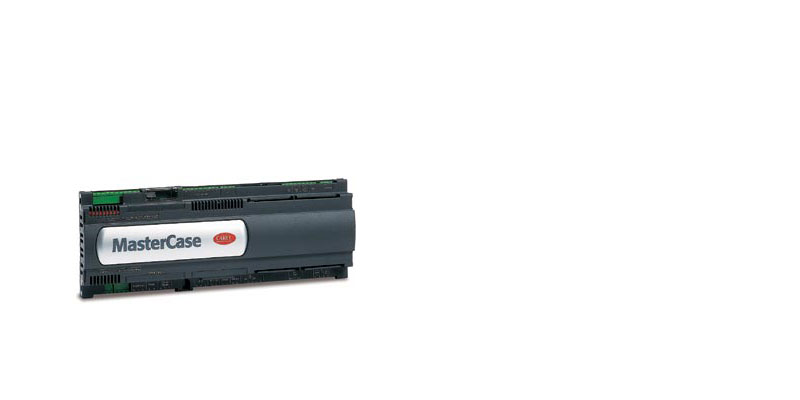

MasterCase

MGE*
MasterCase
  • General characteristics

    The motherboard, which contains the microprocessor, featuring advanced electronic technology (MGE® technology), and the "power" part with the relay outputs.
    The I/O consist of 3 analogue inputs for NTC temperature probes (plus 1 NTC and 1 ratiometric pressure probe in the version for electronic valves), 5 programmable digital inputs, 7 relay outputs, 2 of which auxiliary that can be configured as desired.
    The powerful software embedded in MasterCase allows complete and precise management of all the types of refrigeration cabinets, as well as considerable energy savings. Each MasterCase can be configured either as the Main or as a Secondary for the creation of a local network for the management of multi-evaporator utilities (multiplexed cabinets) allowing the synchronisation of defrosts, the sharing of the values read by the probes, as well as the copying of the programmed parameters from the Main to the Secondary (download).
    In the MasterCase version for electronic valves (MGE0000020), the driver card for the electronic valve is soldered directly onto the motherboard


Documentation

Technical

  • Manuals
    Code Description Language Date * Release
    Code +030220221

    Description MasterCase

    Language ENG

    Date 30/10/2006

    Release 1.2

    Code +030220220

    Description MasterCase

    Language ITA

    Date 30/10/2006

    Release 1.2

    Code +030220223

    Description MasterCase

    Language GER

    Date 30/01/2006

    Release 1.2

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050000190

    Description MGE0000010/MGE0000020 - MasterCase

    Language ENG  GER  ITA

    Date 01/08/2006

    Release 1.4

    Code +050000191

    Description MGE0000010/MGE0000020 - MasterCase

    Language FRE  POR  SPA

    Date 01/08/2006

    Release 1.4


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +302240373

    Description Retail sistema...the one solution

    Language GER

    Date 09/06/2010

    Release 4.0

    Code +302240377

    Description retail... the one solution

    Language RUS

    Date 07/02/2007

    Release 4.1

    Code +302240375

    Description retail sistema...the one solution

    Language POR

    Date 07/02/2007

    Release 4.1

    Code +302240374

    Description Retail sistema...the one solution

    Language SPA

    Date 07/02/2007

    Release 4.1

    Code +302240370

    Description Retail Solutions... the one solution

    Language IND

    Date 09/10/2006

    Release 4.0

    Code +302240371

    Description Retail sistema...the one solution

    Language ENG

    Date 09/10/2006

    Release 4.0

    Code +30C239431

    Description 陈列柜和冷库的应用 解决方案

    Language CHI

    Date 01/10/2006

    Release 1.0
