Power module 3PH remote

WT00*
Power module 3PH remote
  • General characteristics

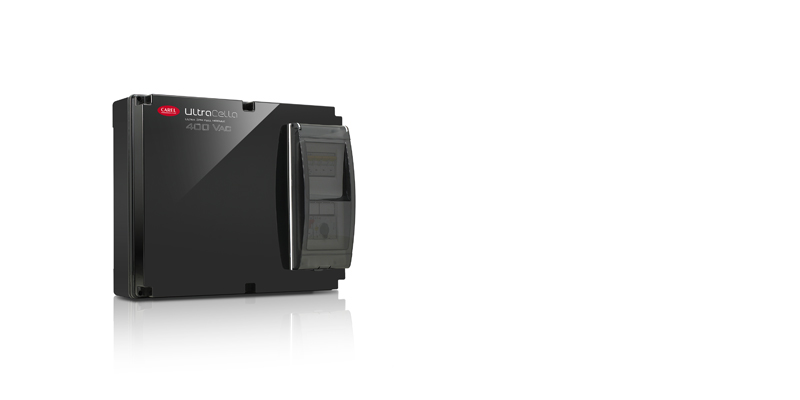

    Remote 3PH power module is an additional module that can expand the application range of the UltraCella controller by increasing load power management in three-phase applications, while assuring protection via circuit breakers, defrost thermostat and fan thermal protector.
    Remote 3PH ensures ample flexibility in applications where design is an important factor. The module can be installed near the three-phase line, optimising installation times and costs thanks to the RS485 connection between the module and UltraCella.
    Available in a version for management of three-phase evaporators with defrosts up to 20 kW and fans up to 4 kW, plus a version for complete management of a three-phase cold room with compressor up to 20 A.



Documentation

Technical

  • 2D/3D drawings
    Code Description Language Date * Release
    Code 2d - 3d Power module 3PH.zip

    Description 2d - 3d drawings

    Language ALL

    Date 20/04/2020

    Release R1

  • Technical Leaflets
    Code Description Language Date * Release
    Code +0500095IE

    Description Ultra 3PH Evaporator Module Modulo di espansione di UltraCella per il controllo di evaporatori trifase UltraCella expansion module for the control of evaporator units

    Language ENG  ITA

    Date 30/09/2020

    Release 1.3

    Code +0500095FD

    Description 'Module d’expansion Ultracella pour le contrôle d’évaporateurs triphasés / UltraCella-Erweiterungsmodul für die Ansteuerung von dreiphasigen Verdampfern

    Language FRE  GER

    Date 30/09/2020

    Release 1.3

    Code +0500096FD

    Description 'Module d’expansion Ultracella pour le contrôle des unités de condensation et des évaporateurs triphasés UltraCella-Erweiterungsmodul für die Ansteuerung von Verflüssigersätzen und dreiphasigen Verdampfern

    Language FRE  GER

    Date 18/11/2015

    Release 1.2

    Code +0500096IE

    Description UltraCella 3PH Full Module Modulo di espansione di UltraCella per il controllo di moto condensanti ed evaporatori trifase UltraCella expansion module for the control of three-phase condensing and evaporator units

    Language ENG  ITA

    Date 08/11/2015

    Release 1.2
