  • General characteristics

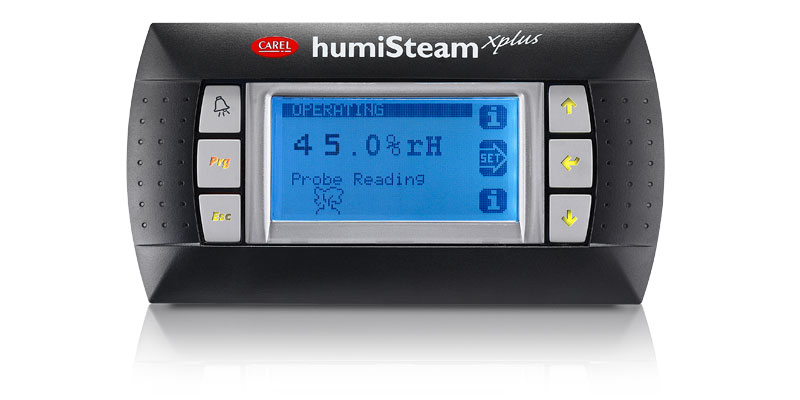

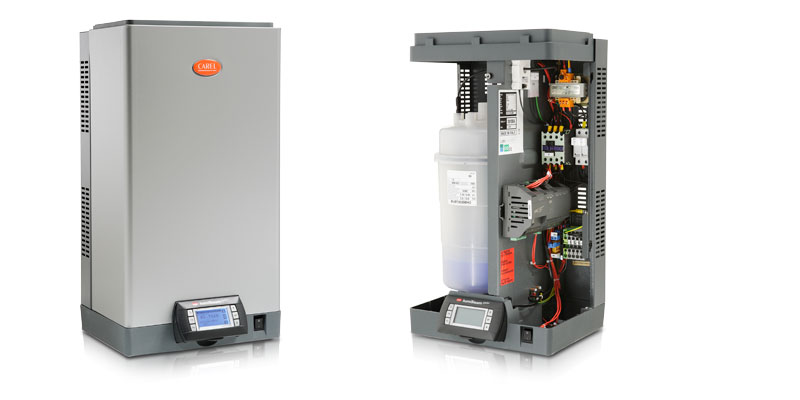

    Type "X" humiSteam humidifiers represent Carel's high-end solution in immersed electrode humidifiers. They have a built-in controller with graphic display and keypad for programming and controlling operation.
    The following modes can be selected at any time:
    • ON/OFF by external humidistat;
    • proportional to external signal;
    • proportional to external signal plus a maximum humidity limit probe in the duct;
    • modulating based on set point and humidity probe reading ;
    • modulating based on set point and humidity probe reading and limit probe in the duct.
    Steam flow-rate is modulated continuously from 20 to 100% of maximum capacity (10 to 100% in the 90 and 130 kg/h models), except for in ON/OFF mode, where production is all or nothing.
    Type "X" humiSteam humidifiers can accept the following external signals, selected on the keypad: voltage-free contact from humidistat, 0-1 V, 0-10 V, 2-10 V, 0-20 mA, 4-20 mA.
    Type "X" controllers exploit all the advantages of pCO technology, the family of CAREL programmable controllers:
    • easy to use, graphic display with clear messages in different languages;
    • operation based on daily and weekly time bands with variable set points;
    • BMS connectivity via various types of LAN (e.g.: Modbus® (standard), BACnet™, LON®);
    • complete diagnostics with text messages, alarm log with time stamping;
    • remote diagnostics via GSM (optional);
    • automatic drain due to inactivity.
  • Plus

    • AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam;
    • cylinders with galvanized electrodes and anti-scale filter at bottom, openable cylinders also available;
    • steam production with continuous modulation from 20% to maximum rating (10% for 90 & 130 kg/h models);
    • built-in conductivity sensor and control software to optimize energy efficiency and maintenance costs, with constant performance throughout cylinder life.
    • automatic water drain after 3 days of inactivity
