GLD Mini

GDM*
GLD Mini
GLD Mini GLD Mini

  • General characteristics

    The GLD Mini 1 is a gas leakage detector capable of quickly detecting refrigerant gas leaks in various applications.
    Compact and easy to install, GLD Mini is the ideal solution to ensure safety of personnel and operational continuity of systems.
    The switch version for R290 - an efficient and environmentally-friendly refrigerant - can be integrated into existing control systems or used in new installations. Designed to be robust, it incorporates a redundant safety feature: the twin microcontroller and two solid state alarm relays ensure continuous, safe operation even in the event of sensor failures.
    Automatic calibration means the device requires minimal maintenance, ensuring constant performance over time and a long working life.
    In summary, GLD Mini is a reliable, easy to install solution with very low maintenance costs, perfect for a wide range of applications, from small residential systems to the most complex industrial facilities.



Documentation

Technical

  • 2D/3D drawings
    Code Description Language Date * Release
    Code GLD Mini.STEP

    Description 2D-3D drawings

    Language ALL

    Date 28/01/2025

    Release R.0

    Code GLD Mini - Connector.STEP

    Description 2D-3D drawings

    Language ALL

    Date 28/01/2025

    Release R.0

  • Manuals
    Code Description Language Date * Release
    Code +0300049ML

    Description GLD Mini - Gas Leakage Detector - Manuale d'uso / User manual

    Language ENG  ITA

    Date 16/01/2025

    Release 1.0

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050003538

    Description GLD MINI - Gas Leakage Detector Mini Version

    Language ENG  FRE  GER  ITA  SPA

    Date 16/01/2025

    Release 1.0


Images

  • High resolution images
    Code Description Language Date * Release

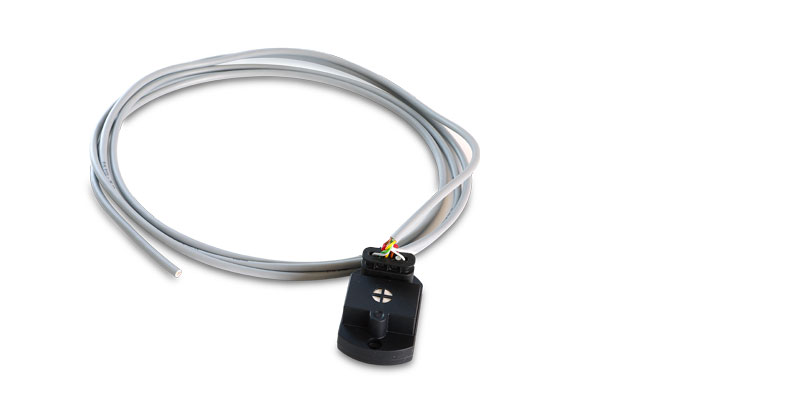

    Code PH24LGL301-GLD-micro

    Description CAREL Sensors and protection devices - Gas leakage detectors - GLD Mini

    Language ALL

    Date 28/01/2025

    Release R.0

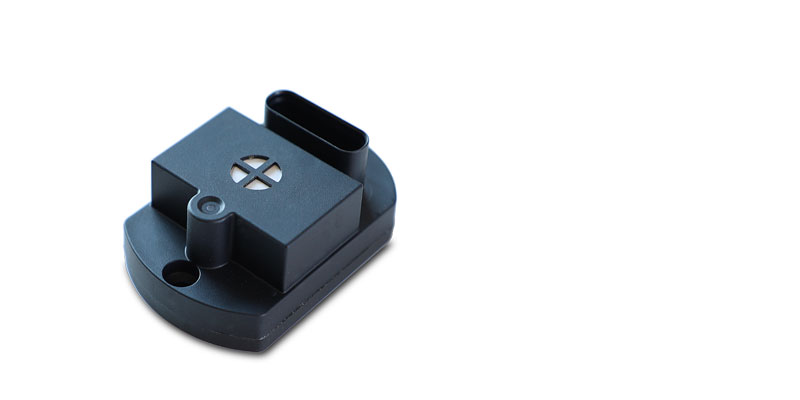

    Code PH24LGL302-GLD-micro-no-cable

    Description CAREL Sensors and protection devices - Gas leakage detectors - GLD Mini

    Language ALL

    Date 28/01/2025

    Release R.0
